EU Certified Long Stroke Series Synchronous Belt Slide Table 0.08mm Precision

SXEGL Intelligent Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

EU Certified Long Stroke Series Synchronous Belt Slide Table 0.08mm Precision

Brand Name : SXEGL

Model Number : EGT70

Certification : CE/ROSH/EPA/FCC/ISO

Place of Origin : China

MOQ : 1

Price : 210-630

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : Worldwide delivery

Delivery Time : 7-14

Packaging Details : Carton with foam

Repeatable positioning accuracy(mm) : ±0.08

Max stroke(mm) : 100-5000mm/interval 50mm

Timing belt specification : 15×3(lead 78mm)

Increase weight(per 100mm stroke kg) : 0.34

Magnetic reed switch : CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type, wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m

Max load          : EGT70:12 EGT70L:15

Contact Now

EU Certified Long Stroke Series Synchronous Belt Slide Table 0.08mm Precision

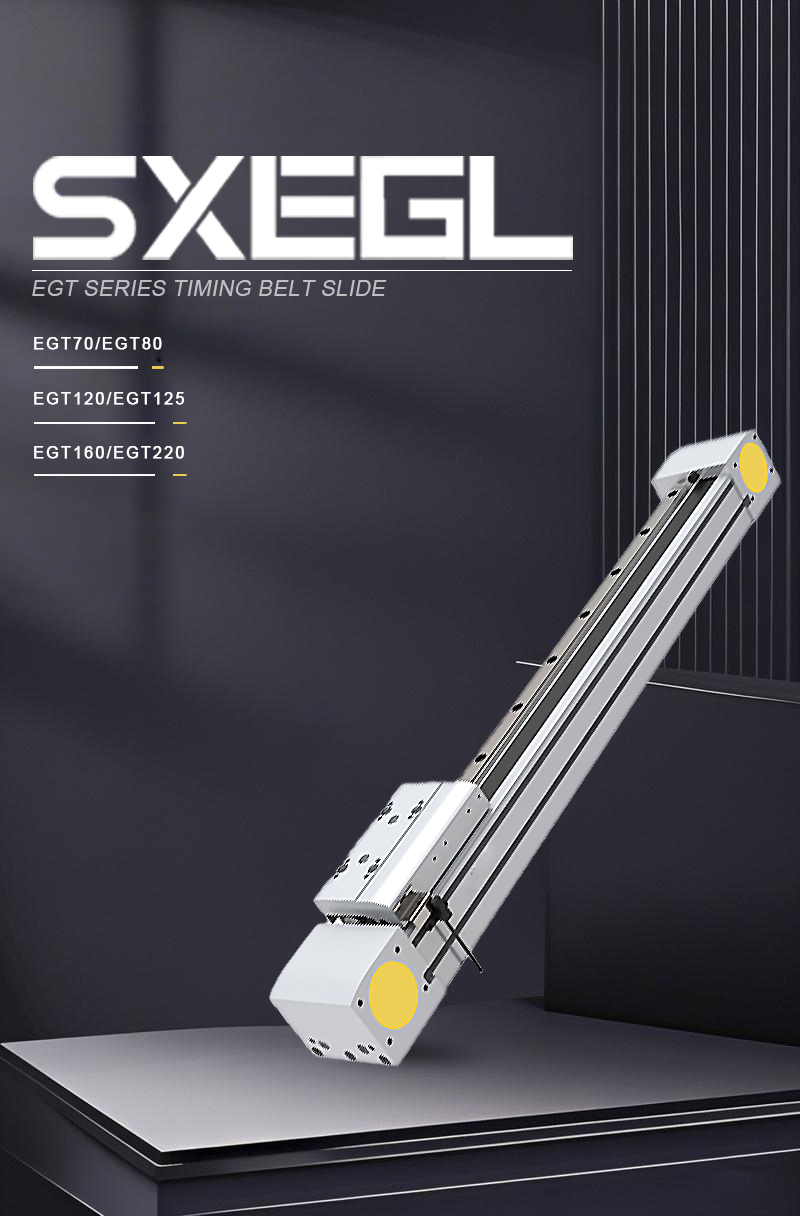

Designed for industrial automation, the EGT Series synchronous belt slides are high-performance linear motion modules centered on the design philosophy of "dual-guide rail precise guiding + high-load bearing capacity + flexible mounting." They perfectly adapt to complex mechanical structures such as linear gantries and cantilever electric cylinders, providing stable and reliable linear motion foundations for scenarios like logistics sorting, automotive part handling, and electronic component mounting. Their key highlights include a 5000mm ultra-long stroke, ±0.08mm repeat positioning accuracy, and flexible four-side motor mounting, redefining the versatility and adaptability of basic-axis slides.

Core Application Scenarios

  1. Linear Gantry Systems
    In automotive assembly workshops, EGT slides serve as the X-axis (3000mm stroke) and Y-axis (2000mm stroke) in component handling gantries. With a 100kg load capacity, they effortlessly carry heavy components like gearboxes. The dual-guide rail design ensures no deflection under gantry span, while ±0.08mm accuracy meets the positioning requirements for bolt holes.
  2. Cantilever Electric Cylinders
    In 3C electronics pick-and-place machines, EGT slides function as the X-axis (1000mm stroke) in cantilever mechanisms. The side-mounted motor design saves 50% vertical space, while anti-tipping torque characteristics ensure no offset under single-side loading (e.g., nozzle heads), enabling precise placement of 0402 components.
  3. Logistics Sorting Lines
    In e-commerce warehouse automated sorting systems, EGT slides (5000mm stroke) act as main conveying axes. With a high speed of 2.5m/s and ±0.08mm accuracy, they drive sorting carts to achieve rapid positioning and delivery of parcels, improving efficiency by 35% compared to traditional chain conveyors.

Core Selling Points

  1. Flexible Motor Mounting
    Motors can be installed on any of the four sides of the cylinder and easily converted as needed, offering maximum layout flexibility for complex automation setups.
  2. Space-Saving Design
    Proximity switches can be embedded within the profile grooves, optimizing space utilization and simplifying cable management in compact equipment.
  3. Precise Guidance & High Load Capacity
    The dual-guide rail system ensures superior linear guidance and stability, with robust load-bearing capabilities that make it ideal for heavy-duty applications in gantries and cantilever structures.
EU Certified Long Stroke Series Synchronous Belt Slide Table 0.08mm Precision
EGT70 parameter
Standard motor output(W) 200 400
Rated torque(N ·m) 0.64 1.27
Repeatable positioning accuracy(mm) ±0.08
Max stroke(mm) 100-5000mm/interval 50mm
Timing belt specification 15×3(lead 78mm)
Reduction ratio No 3:1 / No 3:1 /
Max speed(mm/s) 3900 1300 / 3900 1300 /
Max horizontal load(kg) 4 12 / 8 15 /
Max load EGT70:12
EGT70L:15
Basic weight(Omm stroke kg) EGT70:3.67 EGT70L:4.08
Increase weight(per 100mm stroke kg) 0.34
Magnetic reed switch CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m
Photoelectric switch PM-T45 NPN type wire length 1M
PM-T45-P PNP type wire length 1M
Briquettes Page 140 for details
