Modular Multi Axis Maintenance Free Synchronous Belt Slide Table Dust Proof

  • 1
  • 2
  • 3

Brand Name : SXEGL

Model Number : MK65

Certification : CE/EPA/FCC/ISO/ROSH

Place of Origin : China

MOQ : 1

Price : 350-550

Payment Terms : L/C,D/A,D/P,T/T,MoneyGram,Western Union

Supply Ability : Worldwide delivery

Delivery Time : 7-14

Packaging Details : Carton with foam

Repeatable positioning accuracy(mm) : ±0.1

Rated thrust(N) : 220

Belt width(mm) : 32

High rigidity linear slide(mm) : W15XH12.5

Contact Now

Modular Multi Axis Maintenance Free Synchronous Belt Slide Table Dust Proof

Incorporating German precision manufacturing craftsmanship and modular design philosophy, the MK Series Synchronous Belt Slide is a high-performance linear motion system custom-engineered for European industrial standards. As a groundbreaking solution for long-stroke material handling and stable load-bearing, it covers a full stroke range of 100-6000 mm, breaks through medium-precision bottlenecks with ±0.1 mm positioning accuracy, and reshapes automation production lines in logistics, automotive, and warehousing industries with its robust 200KG horizontal/50KG vertical load capacity.

Application Scenarios

① Smart Logistics & Warehousing Hub

In cross-border e-commerce intelligent sorting centers, the 5000 mm ultra-long stroke MK Slide acts as the core main transmission shaft, driving sorting trolleys at high speed (2 m/s) while effortlessly handling full cartons with its 200KG horizontal load capacity. The ±0.1 mm precision ensures zero-error docking at scanning stations, delivering a 30% efficiency improvement over traditional chain conveying systems and serving as the core engine for smart warehousing cost reduction and efficiency enhancement.

② Flexible Skeleton for Automotive Manufacturing

At automotive chassis assembly lines, the 50KG vertical load MK Slide forms a cantilever handling system with robotic arms, precisely executing vertical lifting and horizontal transfer of engine components. Its European-standardized interface enables seamless integration with KUKA robots, drastically reducing production line transformation cycles and providing a reliable mechanical foundation for flexible manufacturing.

③ Artery of Electronic Aging Test Lines

In LCD panel aging workshops, multiple 1000 mm stroke MK Slides form an intelligent circular conveying network, supporting high-frequency operations of lifting fixtures with their 50KG vertical load capacity. The ±0.1 mm positioning accuracy ensures micron-level alignment between panels and test interfaces, while 24/7 continuous operation stability boosts sustained production capacity, making it a trusted partner in electronics manufacturing.

Core Technologies

✦ Benchmark for Medium-Precision Performance

Equipped with PM high-tension synchronous belts and precision-milled pulleys, combined with closed-loop servo motor control, it achieves ±0.1 mm repeat positioning accuracy across the entire stroke. This cost-effective solution precisely adapts to typical scenarios like automatic labeling and workpiece transfer, meeting diverse precision requirements.

✦ Horizontal Handling Architecture

The innovative dual-guide parallel layout, paired with thickened aluminum alloy sliders, creates a 200KG horizontal dynamic load platform capable of directly supporting heavy components such as industrial robot arms and automotive gearboxes. Compared to traditional single-rail designs, its load capacity is increased by 40%, setting a new benchmark for long-distance handling performance.

✦ Vertical Safety Guard System

Featuring a standard anti-fall braking structure and guide rail pre-tensioning technology, it achieves a >95% sway suppression rate under 50KG vertical loads. Maturely applied in high-risk scenarios like automatic loading/unloading machines and ASRS (Automated Storage and Retrieval System) stacker cranes, it provides dual-layer safety 保障 (safeguards) for vertical movements.

Industrial Application Map

  • Logistics: Cross-border sorting, smart warehousing, conveyor line integration
  • Automotive: Assembly line handling, chassis assembly, component transfer
  • Electronics Manufacturing: Aging testing, precision positioning, multi-station collaboration
Modular Multi Axis Maintenance Free Synchronous Belt Slide Table Dust Proof
Basic specifications MK65



Specification Motor speed(rpm/min) 3:1 5:1 7:1 10:1
Max speed(mm/s)*1 1833 1100 785 550
Max load(kg) Horizontal 30 45 55 60
Vertical*2 9 15 16 17
Repeatable positioning accuracy(mm) ±0.1
Rated thrust(N) 220
Standard stroke(mm)*3 100-6000mm/100mm interval
Component AC servo motor capacity(W) 400
Belt width(mm) 32
High rigidity linear slide(mm) W15XH12.5
Origin sensor Plug PM-T45(NPN)
AModular Multi Axis Maintenance Free Synchronous Belt Slide Table Dust ProofBModular Multi Axis Maintenance Free Synchronous Belt Slide Table Dust ProofModular Multi Axis Maintenance Free Synchronous Belt Slide Table Dust ProofModular Multi Axis Maintenance Free Synchronous Belt Slide Table Dust Proof
Modular Multi Axis Maintenance Free Synchronous Belt Slide Table Dust Proof


Modular Multi Axis Maintenance Free Synchronous Belt Slide Table Dust Proof




















Unit:mm Unit:mm Unit:mm
Horizontal
installation
A B C
Side
installation
A B C
Vertical
installation
A C
3:1 10KG 950 250 42
3:1 10KG 42 250 950
3:1 3KG 900 900
20KG 420 105 18
20KG 19 110 450
6KG 450 450
30KG 250 55 10
30KG 10 60 260
9KG 300 300
5:1 25KG 950 140 24
5:1 25KG 25 140 950
5:1 5KG 900 900
35KG 625 90 15
35KG 15 90 600
10KG 450 450
45KG 450 55 10
45KG 10 60 450
15KG 300 300
7:1 28KG 1300 145 25
7:1 28KG 25 145 1300
7:1 6KG 900 900
40KG 850 90 15
40KG 15 90 850
12KG 450 450
55KG 550 50 10
55KG 10 60 850
16KG 300 300
10:1 30KG 1850 145 25
10:1 30KG 25 140 1950
10:1 6KG 900 900
45KG 1250 90 15
45KG 15 90 1150
13KG 450 450
60KG 800 50 10
60KG 10 60 800
17KG 330 300

Modular Multi Axis Maintenance Free Synchronous Belt Slide Table Dust Proof

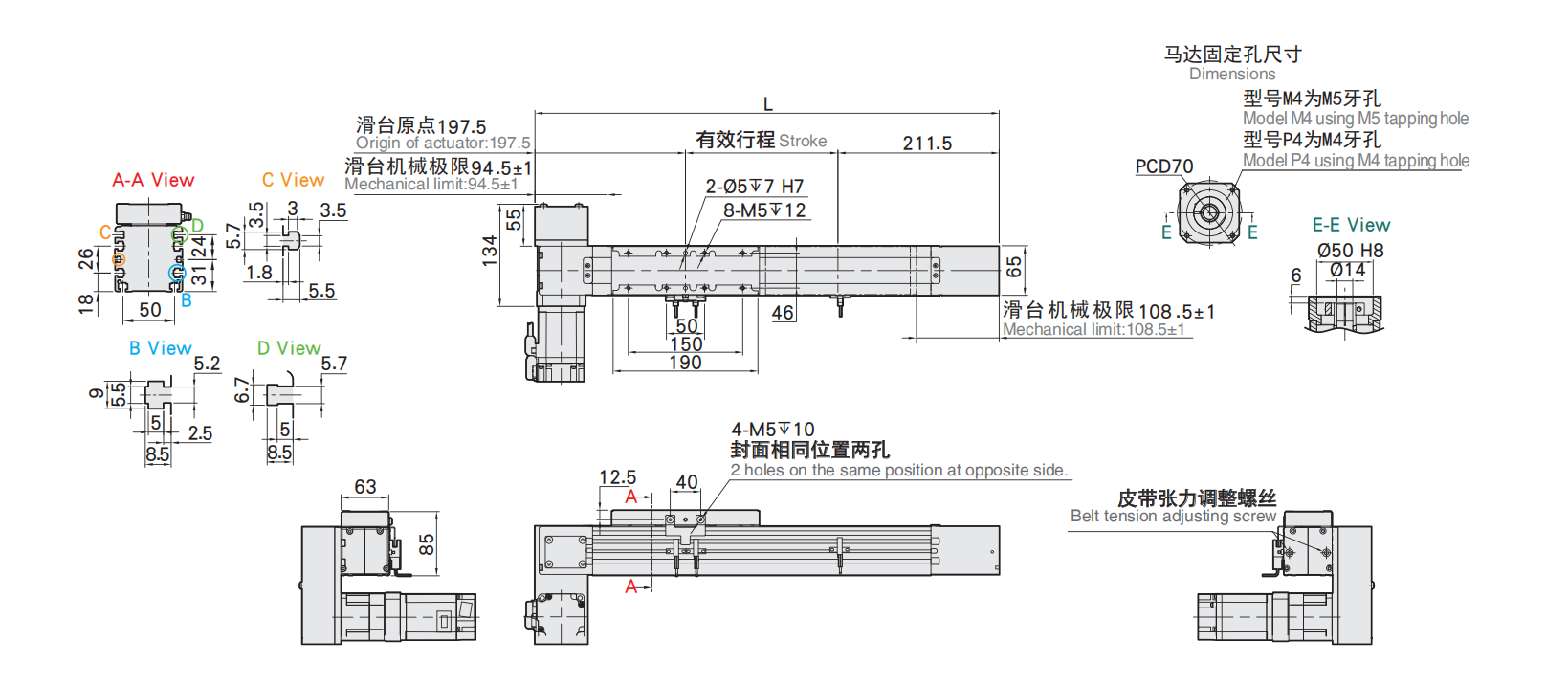

Motor folds right up
Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200
L 509 609 709 809 909 1009 1109 1209 1309 1409 1509 1609
KG 7.87 8.43 8.99 9.55 10.11 10.67 11.23 11.79 12.35 12.91 13.47 14.03
Stroke 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500
L 1709 1809 1909 2009 2109 2209 2309 2409 2509 2609 2709 2809 2909
KG 14.59 15.15 15.71 16.27 16.83 17.39 17.95 18.51 19.07 19.63 20.19 20.75 21.31
Stroke 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600 3700
L 3009 3109 3209 3309 3409 3509 3609 3709 3809 3909 4009 4109
KG 21.87 22.43 22.99 23.55 24.11 24.67 25.23 25.79 26.35 26.91 27.47 28.03
Stroke 3800 3900 4000 4100 4200 4300 4400 4500 4600 4700 4800 4900 5000
L 4209 4309 4409 4509 4609 4709 4809 4909 5009 5109 5209 5309 5409
KG 28.59 29.15 29.71 30.27 30.83 31.39 31.95 32.51 33.07 33.63 34.19 34.75 35.31

Modular Multi Axis Maintenance Free Synchronous Belt Slide Table Dust Proof

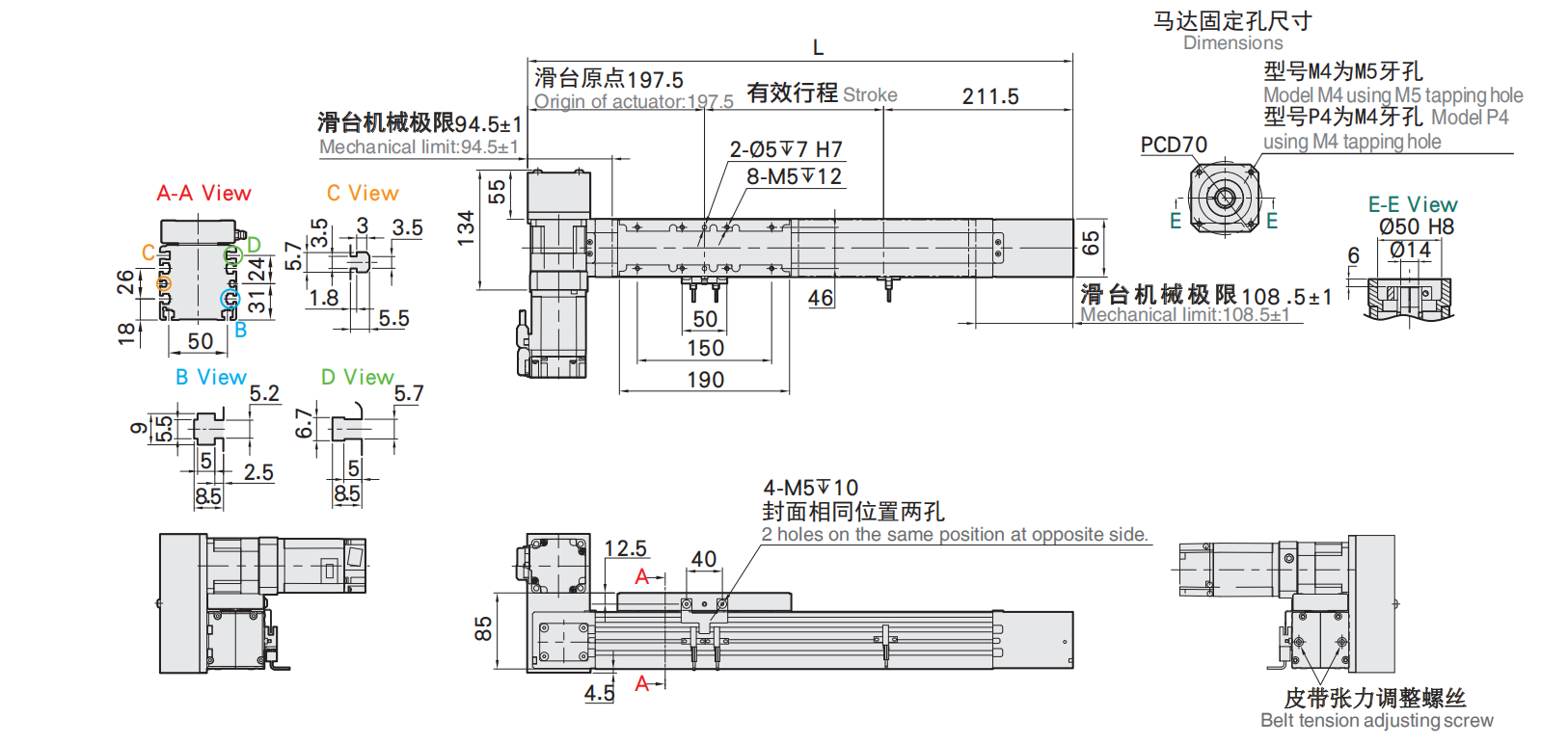

Motor folds left up
Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200
L 509 609 709 809 909 1009 1109 1209 1309 1409 1509 1609
KG 7.87 8.43 8.99 9.55 10.11 10.67 11.23 11.79 12.35 12.91 13.47 14.03
Stroke 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500
L 1709 1809 1909 2009 2109 2209 2309 2409 2509 2609 2709 2809 2909
KG 14.59 15.15 15.71 16.27 16.83 17.39 17.95 18.51 19.07 19.63 20.19 20.75 21.31
Stroke 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600 3700
L 3009 3109 3209 3309 3409 3509 3609 3709 3809 3909 4009 4109
KG 21.87 22.43 22.99 23.55 24.11 24.67 25.23 25.79 26.35 26.91 27.47 28.03
Stroke 3800 3900 4000 4100 4200 4300 4400 4500 4600 4700 4800 4900
L 4209 4309 4409 4509 4609 4709 4809 4909 5009 5109 5209 5309 5409
KG 28.59 29.15 29.71 30.27 30.83 31.39 31.95 32.51 33.07 33.63 34.19 34.75 35.31
Modular Multi Axis Maintenance Free Synchronous Belt Slide Table Dust Proof

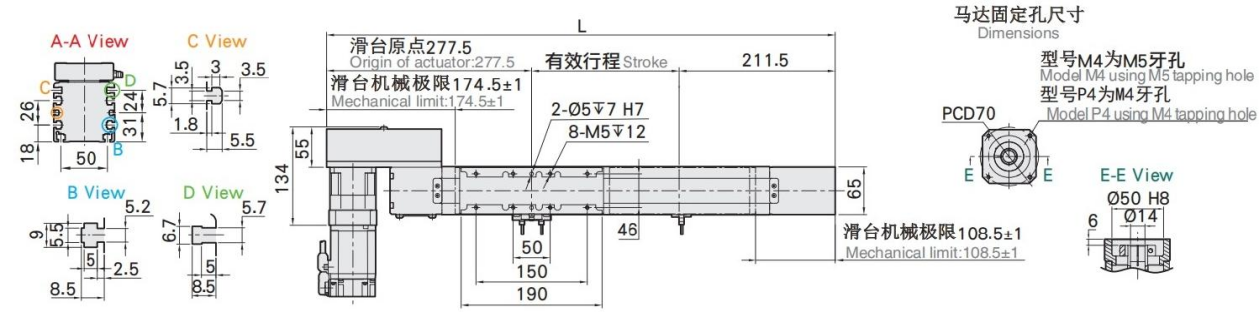

Motor folds left
Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200
L 589 689 789 889 989 1089 1189 1289 1389 1489 1589 1689
KG 7.87 8.43 8.99 9.55 10.11 10.67 11.23 11.79 12.35 12.91 13.47 14.03
Stroke 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500
L 1789 1889 1989 2089 2189 2289 2389 2489 2589 2689 2789 2889 2989
KG 14.59 15.15 15.71 16.27 16.83 17.39 17.95 18.51 19.07 19.63 20.19 20.75 21.31
Stroke 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600 3700
L 3089 3189 3289 3389 3489 2589 3689 3789 3889 3989 4089 4189
KG 21.87 22.43 22.99 23.55 24.11 24.67 25.23 25.79 26.35 26.91 27.47 28.03
Stroke 3800 3900 4000 4100 4200 4300 4400 4500 4600 4700 4800 4900 5000
L 4289 4389 4489 4589 4689 4789 4889 4989 5089 5189 5289 5389 5489
KG 28.59 29.15 29.71 30.27 30.83 31.39 31.95 32.51 33.07 33.63 34.19 34.75 35.31

Modular Multi Axis Maintenance Free Synchronous Belt Slide Table Dust Proof

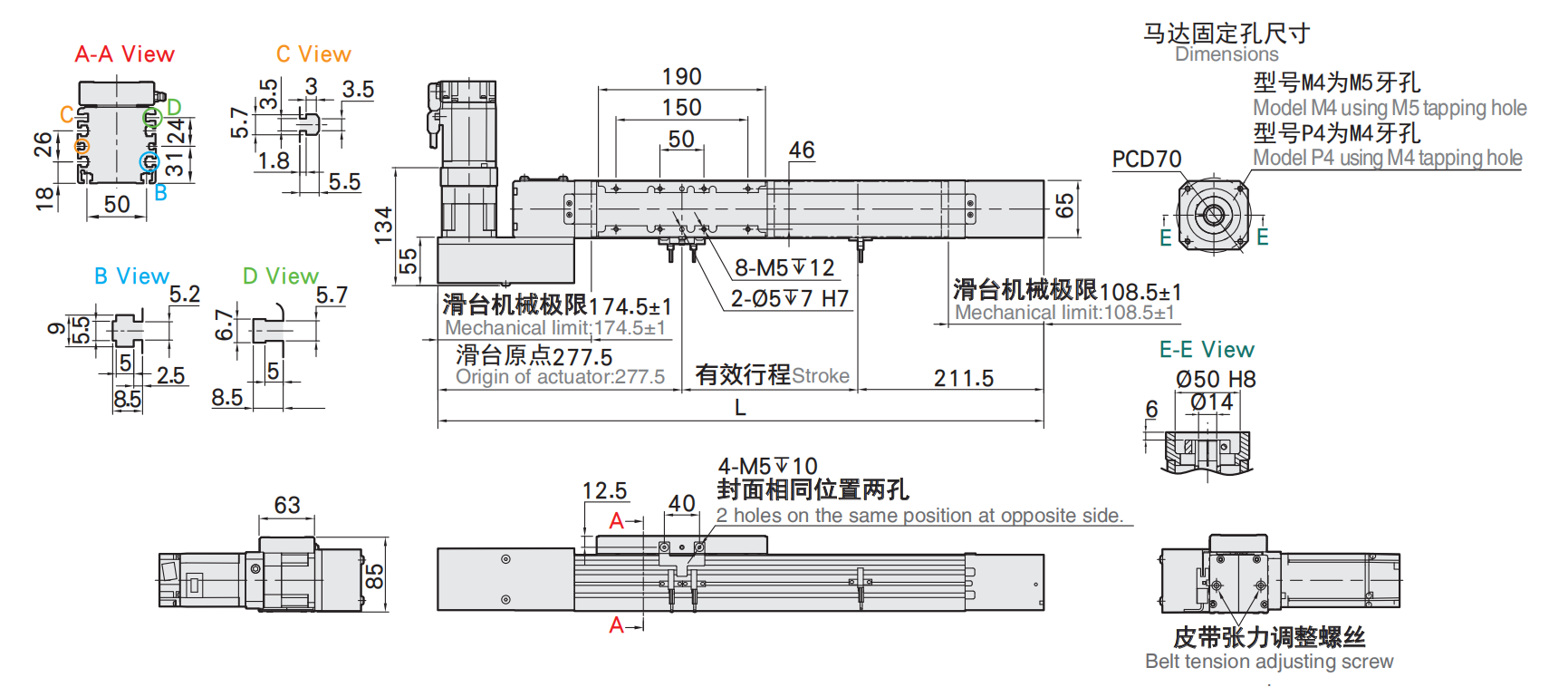

Motor folds right
Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200
L 589 689 789 889 989 1089 1189 1289 1389 1489 1589 1689
KG 7.87 8.43 8.99 9.55 10.11 10.67 11.23 11.79 12.35 12.91 13.47 14.03
Stroke 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600 3700
L 3089 3189 3289 3389 3489 2589 3689 3789 3889 3989 4089 4189
KG 21.87 22.43 22.99 23.55 24.11 24.67 25.23 25.79 26.35 26.91 27.47 28.03
Stroke 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500
L 1789 1889 1989 2089 2189 2289 2389 2489 2589 2689 2789 2889 2989
KG 14.59 15.15 15.71 16.27 16.83 17.39 17.95 18.51 19.07 19.63 20.19 20.75 21.31
Stroke 3800 3900 4000 4100 4200 4300 4400 4500 4600 4700 4800 4900 5000
L 4289 4389 4489 4589 4689 4789 4889 4989 5089 5189 5289 5389 5489
KG 28.59 29.15 29.71 30.27 30.83 31.39 31.95 32.51 33.07 33.63 34.19 34.75 35.31

Modular Multi Axis Maintenance Free Synchronous Belt Slide Table Dust Proof

Motor folds left down
Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200
L 509 609 709 809 909 1009 1109 1209 1309 1409 1509 1609
KG 7.87 8.43 8.99 9.55 10.11 10.67 11.23 11.79 12.35 12.91 13.47 14.03
Stroke 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500
L 1709 1809 1909 2009 2109 2209 2309 2409 2509 2609 2709 2809 2909
KG 14.59 15.15 15.71 16.27 16.83 17.39 17.95 18.51 19.07 19.63 20.19 20.75 21.31
Stroke 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600 3700
L 3009 3109 3209 3309 3409 3509 3609 3709 3809 3909 4009 4109
KG 21.87 22.43 22.99 23.55 24.11 24.67 25.23 25.79 26.35 26.91 27.47 28.03
Stroke 3800 3900 4000 4100 4200 4300 4400 4500 4600 4700 4800 4900 5000
L 4209 4309 4409 4509 4609 4709 4809 4909 5009 5109 5209 5309 5409
KG 28.59 29.15 29.71 30.27 30.83 31.39 31.95 32.51 33.07 33.63 34.19 34.75 35.31

Modular Multi Axis Maintenance Free Synchronous Belt Slide Table Dust Proof

Motor folds right down
Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200
L 509 609 709 809 909 1009 110g 1209 1309 1409 1509 1609
KG 7.87 8.43 8.99 9.55 10.11 10.67 11.23 11.79 12.35 12.91 13.47 14.03


Stroke 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500
L 1709 1809 1909 2009 2109 2209 2309 2409 2500 2609 2709 2809 2909
KG 14.59 15.15 15.71 16.27 16.83 17.39 17.95 18.51 19.07 19.63 20.19 20.75 21.31
Stroke 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600 3700
L 3009 3109 3209 3309 3409 3509 3609 3709 3809 3909 4009 4109
KG 21.87 22.43 22.99 23.55 24.11 24.67 25.23 25.79 26.35 26.91 27.47 28.03
Stroke 3800 3900 4000 4100 4200 4300 4400 4500 4600 4700 4800 4900 5000
L 4209 4309 4409 4509 4609 4709 4809 4909 5009 5109 5209 5309 5409
KG 28.59 29.15 29.71 30.27 30.83 31.39 31.95 32.51 33.07 33.63 34.19 34.75 35.31

Modular Multi Axis Maintenance Free Synchronous Belt Slide Table Dust Proof
