Industrial Dust Proof Timing Belt Linear Stages Find Extensive Applications in Diverse Fields

  • 1
  • 2
  • 3

Brand Name : SXEGL

Model Number : MK110

Certification : CE/EPA/FCC/ISO/ROSH

Place of Origin : China

MOQ : 1

Payment Terms : L/C,D/A,D/P,T/T,MoneyGram,Western Union

Supply Ability : Worldwide delivery

Delivery Time : 7-14

Packaging Details : Carton with foam

Price : 600-800

Repeatable positioning accuracy(mm) : ±0.1

Rated thrust(N) : 765

Belt width(mm) : 50

High rigidity linear slide(mm) : W23XH18

Contact Now

Industrial Dust Proof Timing Belt Linear Stages Find Extensive Applications in Diverse Fields

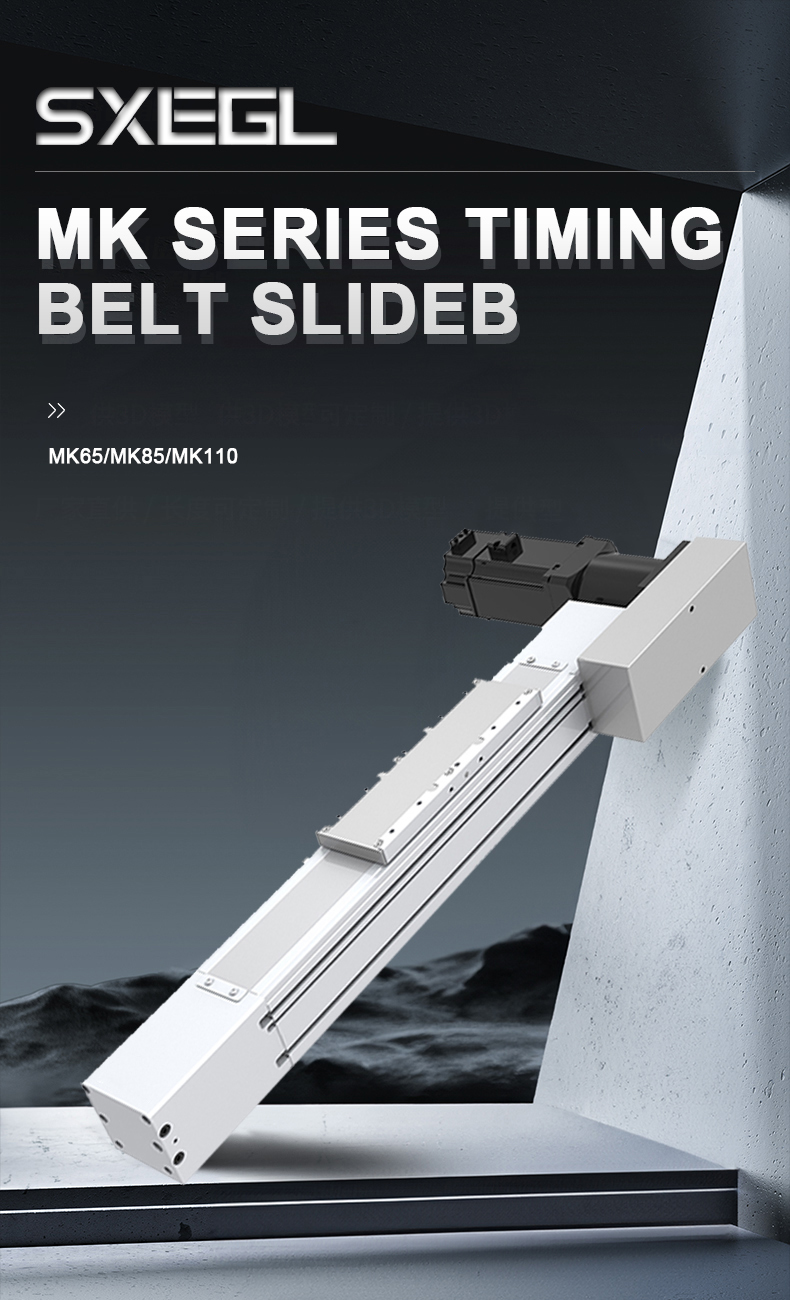

As a high-end linear motion module deeply adapted to European industrial standards, the MK Series Synchronous Belt Slide integrates German precision manufacturing processes and modular design philosophy, establishing itself as a core automation component that combines long-stroke expandability and stable load-bearing capabilities. With a full-stroke range covering 100-6000 mm, ±0.1 mm positioning accuracy to meet medium-precision requirements, and a load capacity of 200KG horizontal / 50KG vertical, it adapts to diverse industrial scenarios. It is widely applied in logistics transportation, automotive assembly, warehouse automation, and other fields, particularly suited for European-style production line layouts requiring long-distance material handling and multi-station collaboration.

Typical Application Scenarios

1. Logistics and Warehouse Automation

In cross-border e-commerce intelligent sorting centers, the MK Slide with a 5000 mm ultra-long stroke serves as the core main transmission shaft, driving sorting trolleys at a stable speed of 2 m/s. Its 200KG horizontal load capacity easily handles continuous transportation of full cartons, while ±0.1 mm positioning accuracy ensures millimeter-level docking at scanning stations. Compared with traditional chain conveying solutions, it improves efficiency by 30%, making it the core driving force in intelligent warehouse sorting systems.

2. Automotive Assembly Line Applications

At critical chassis assembly stations, the MK Slide with 50KG vertical load capacity forms a cantilever intelligent handling system with robotic arms, undertaking vertical lifting and horizontal transportation of engine components. Thanks to its standardized European-standard interface design, it achieves plug-and-play rapid integration with existing KUKA robots in workshops, significantly reducing automation production line transformation cycles and enhancing the flexibility of automotive assembly processes.

3. Electronic Equipment Aging Test Line Solutions

In LCD panel aging workshops, multiple MK Slides with 1000 mm strokes form a circular intelligent conveying line. With a 50KG vertical load capacity, they stably support high-frequency movements of lifting fixtures. The ±0.1 mm positioning accuracy ensures reliable electrical connection between panels and test interfaces, and their excellent 24-hour continuous operation stability makes them the preferred core component for high-reliability aging test lines.

Core Technical Advantages

1. High-Precision Positioning Technology

Through optimized matching of PM high-tension synchronous belts and precision-machined pulleys, combined with closed-loop control of servo motors, the MK Slide achieves ±0.1 mm repeat positioning accuracy across the entire stroke range, precisely meeting the technical requirements of medium-precision positioning scenarios such as automatic labeling and workpiece transfer.

2. Benchmark-Level Horizontal Handling Performance

The innovative dual-guide parallel layout, paired with thickened aluminum alloy sliders, enables a 200KG horizontal dynamic load capacity, directly supporting heavy workpieces such as automotive gearboxes and industrial robot arms. Compared with traditional single-rail slides, its load capacity is increased by 40%, setting a new performance benchmark for horizontal handling scenarios.

3. Safe and Stable Vertical Application Solutions

For vertical lifting operations, a specially designed anti-fall braking structure, combined with guide rail pre-tensioning technology, effectively suppresses lateral 晃动 (sway/movement) during movement, ensuring stable operation under 50KG vertical loads. This solution has been maturely applied in equipment such as automatic loading/unloading machines and 立体库堆垛机 (automated storage and retrieval system (ASRS) stacker cranes), ensuring operational safety in high-risk scenarios.
Industrial Dust Proof Timing Belt Linear Stages Find Extensive Applications in Diverse Fields


Basic specifications MK110




Specification Motor speed(rpm/min) 10:1 15:1 20:1
Max speed(mm/s)*1 1250 833 625
Max load (kg) Horizontal 100 150 200
Vertical*2 23 36 50
Repeatable positioning accuracy(mm) ±0.1
Rated thrust(N) 765
Standard stroke (mm)*3 100-6000mm/100 interval
Component AC servo motor capacity(W) 750
Belt width (mm) 50
High rigidity linear slide (mm) W23XH18
Origin sensor Plug PM-T45(NPN)
Valid stroke Quantity Valid stroke Quantity

100-500 4 2600-3000 14 Industrial Dust Proof Timing Belt Linear Stages Find Extensive Applications in Diverse Fields
600-1000 6 3100-3500 16
1100-1500 8 3600-4000 18
1600-2000 10 4100-4500 20
2100-2500 12 4600-5000 22
Allowable load torque table

Static allowable load inertia
Industrial Dust Proof Timing Belt Linear Stages Find Extensive Applications in Diverse Fields Industrial Dust Proof Timing Belt Linear Stages Find Extensive Applications in Diverse Fields
Industrial Dust Proof Timing Belt Linear Stages Find Extensive Applications in Diverse Fields Industrial Dust Proof Timing Belt Linear Stages Find Extensive Applications in Diverse Fields

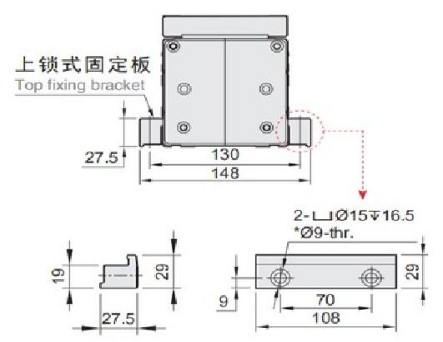

Unit:mm Unit:mm Unit:mm

Unit:mm

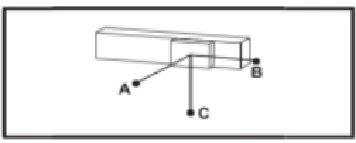

Horizontal
installation
A B C Side
installation
A B C

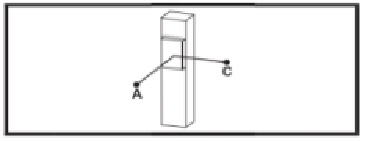

Vertical
installation
A C
MY 1479
10:1 60KG 1110 195 25 10:1 20KG 25 195 1110
10:1 12KG 1300 1300
MP 1479
80KG 750 126 16 30KG 16 126 750
18KG 870 870
MR 190
100KG 550 85 11 40KG 11 85 550
23KG 680 680

15:1 90KG 1400 160 20 15:1 40KG 20 160 1400
15:1 14KG 1480 1480




120KG 940 100 13 50KG 13 100 940
25KG 830 830


150KG 650 63 8 60KG 8 63 650
36KG 575 575


20:1 120KG 1400 115 15 20:1 60KG 15 115 1400
20:1 30KG 750 750
160KG 900 65 8 80KG 8 65 900
40KG 560 560
200KG 550 35 5 100KG 5 35 550
50KG 450 450

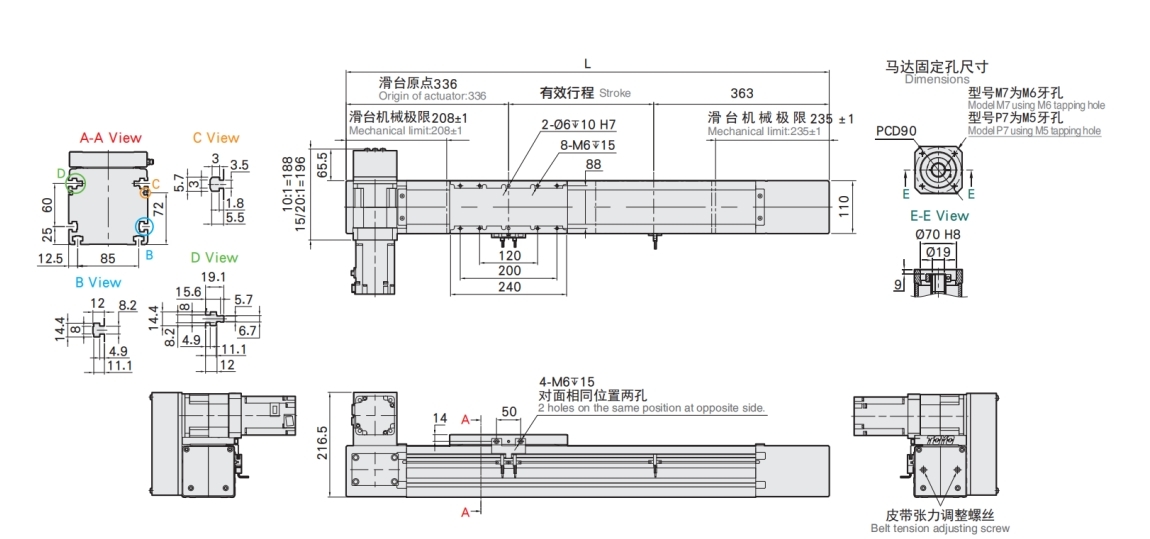

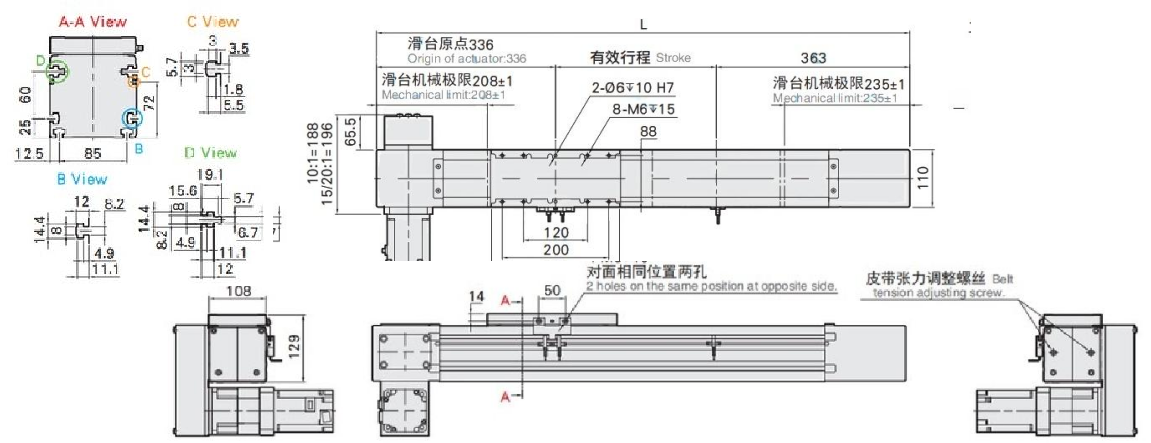

Motor folds left

Industrial Dust Proof Timing Belt Linear Stages Find Extensive Applications in Diverse Fields

Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200
L 799 899 999 1099 1199 1299 1399 1499 1599 1699 1799 1899
KG 18.86 20.1 21.34 22.58 23.82 25.06 26.3 27.54 28.78 30.02 31.26 32.5
Stroke 2500 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600
L 3199 3299 3399 3499 3599 3699 3799 3899 3999 4099 4199 4299
KG 48.62 49.86 51.1 52.34 53.58 54.82 56.06 57.3 58.54 59.78 61.02 62.26
Stroke 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400
L 1999 2099 2199 2299 2399 2499 2599 2699 2799 2899 2999 3099
KG 33.74 34.98 36.22 37.46 38.7 39.94 41.18 42.42 43.66 44.9 46.14 47.38
Stroke 3700 3800 3900 4000 4100 4200 4300 4400 4500 4600 4700 4800
L 4399 4499 4599 4699 4799 4899 4999 5099 5199 5299 5399 5499
KG 63.5 64.74 65.98 67.22 68.46 69.7 70.94 72.18 73.42 74.66 75.9 77.14

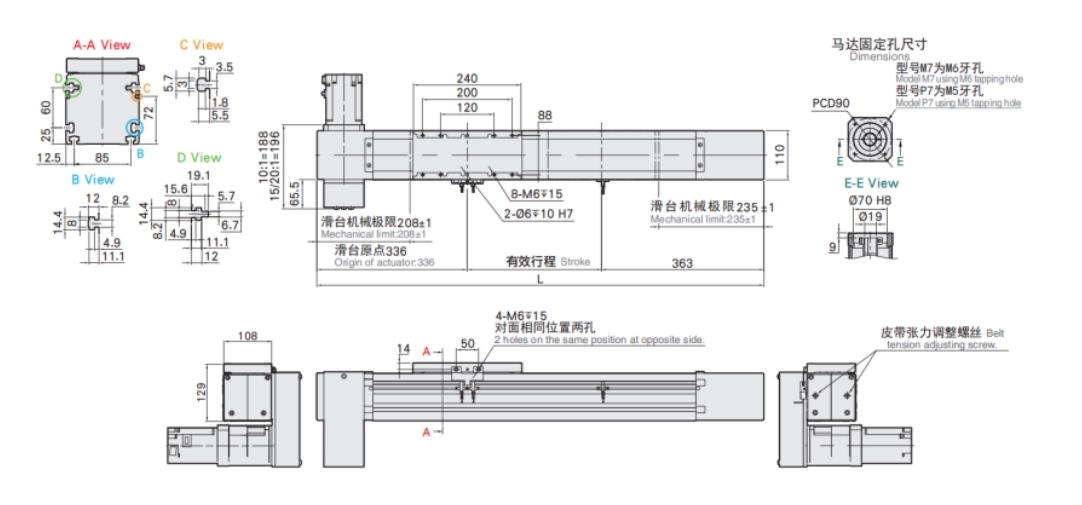

Motor folds right

Industrial Dust Proof Timing Belt Linear Stages Find Extensive Applications in Diverse Fields

Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200
L 899 999 1099 1199 1299 1399 1499 1599 1699 1799 1899 1999
KG 24.09 25.33 26.57 27.81 29.05 30.29 31.53 32.77 34.01 35.25 36.49 37.73
Stroke 2500 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600
L 3299 3399 3499 3599 3699 3799 3899 3999 4099 4199 4299 4399
KG 53.85 55.09 56.33 57.57 58.81 60.05 61.29 62.53 63.77 65.01 66.25 67.49
Stroke 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400
L 2099 2199 2299 2399 2499 2599 2699 2799 2899 2999 3099 3199
KG 38.97 40.21 41.45 42.69 43.93 45.17 46.41 47.65 48.89 50.13 51.37 52.61
Stroke 3700 3800 3900 4000 4100 4200 4300 4400 4500 4600 4700 4800
L 4499 4599 4699 4799 4899 4999 5099 5199 5299 5399 5499 5599
KG 68.73 69.97 71.21 72.45 73.69 74.93 76.17 77.41 78.65 79.89 81.13 82.37

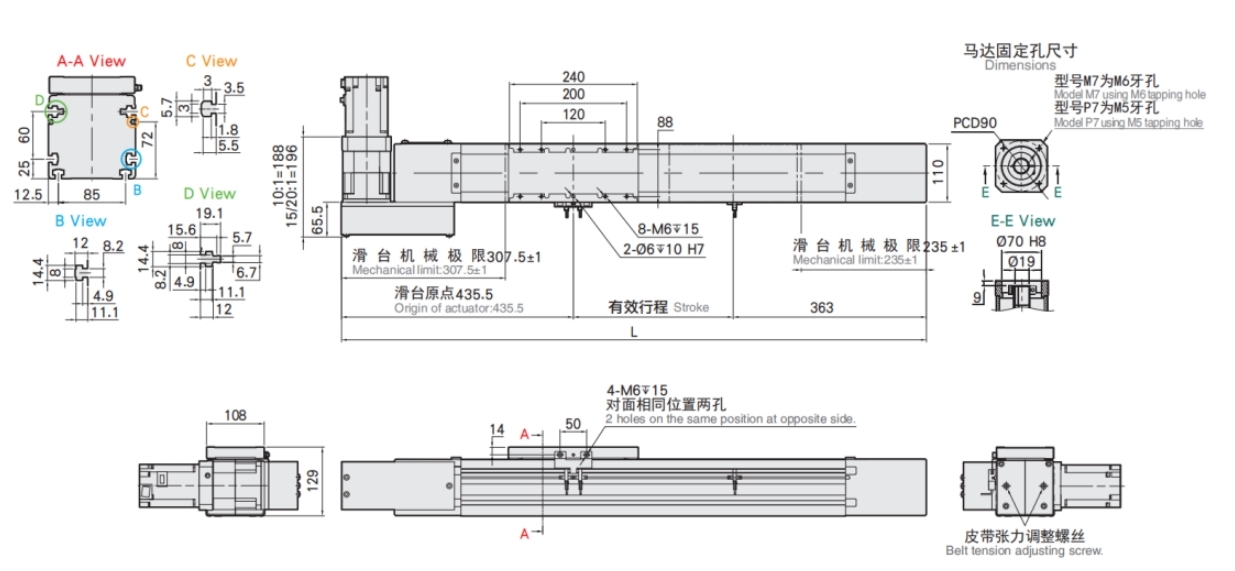

Motor folds left up

Industrial Dust Proof Timing Belt Linear Stages Find Extensive Applications in Diverse Fields

Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200
L 799 899 999 1099 1199 1299 1399 1499 1599 1699 1799 1899
KG 24.09 25.33 26.57 27.81 29.05 30.29 31.53 32.77 34.01 35.25 36.49 37.73
Stroke 2500 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600
L 3199 3299 3399 3499 3599 3699 3799 3899 3999 4099 4199 4299
KG 53.85 55.09 56.33 57.57 58.81 60.05 61.29 62.53 63.77 65.01 66.25 67.49
Stroke 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400
L 1999 2099 2199 2299 2399 2499 2599 2699 2799 2899 2999 3099
KG 38.97 40.21 41.45 42.69 43.93 45.17 46.41 47.65 48.89 50.13 51.37 52.61
Stroke 3700 3800 3900 4000 4100 4200 4300 4400 4500 4600 4700 4800
L 4399 4499 4599 4699 4799 4899 4999 5099 5199 5299 5399 5499
KG 68.73 69.97 71.21 72.45 73.69 74.93 76.17 77.41 78.65 79.89 81.13 82.37

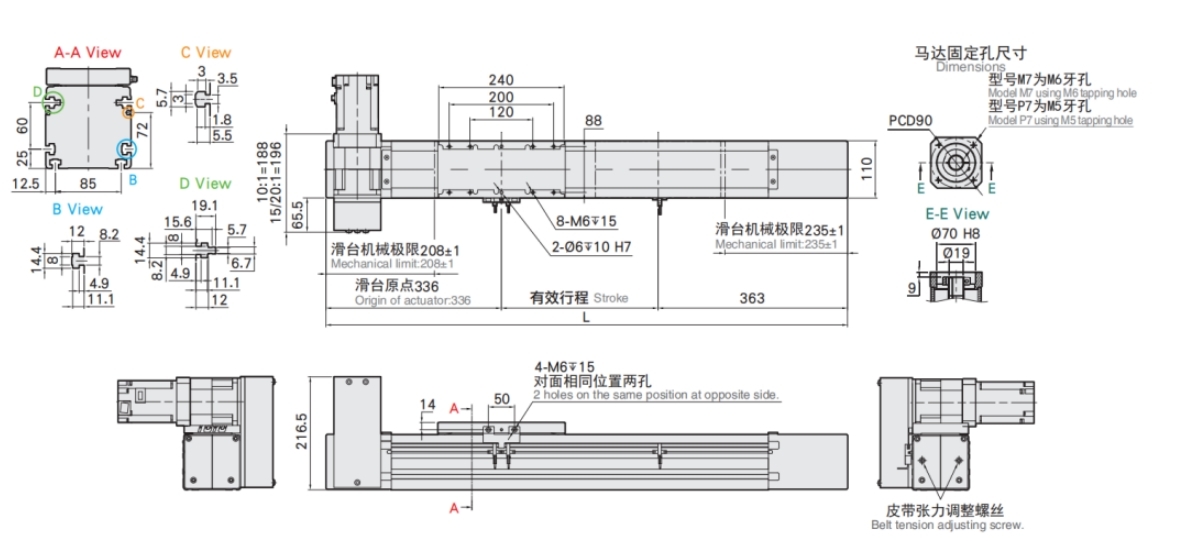

Motor folds right up

Industrial Dust Proof Timing Belt Linear Stages Find Extensive Applications in Diverse Fields

Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200
L 799 899 999 1099 1199 1299 1399 1499 1599 1699 1799 1899
KG 24.09 25.33 26.57 27.81 29.05 30.29 31.53 32.77 34.01 35.25 36.49 37.73
Stroke 2500 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600
L 3199 3299 3399 3499 3599 3699 3799 3899 3999 4099 4199 4299
KG 53.85 55.09 56.33 57.57 58.81 60.05 61.29 62.53 63.77 65.01 66.25 67.49
Stroke 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400
L 1999 2099 2199 2299 2399 2499 2599 2699 2799 2899 2999 3099
KG 38.97 40.21 41.45 42.69 43.93 45.17 46.41 47.65 48.89 50.13 51.37 52.61
Stroke 3700 3800 3900 4000 4100 4200 4300 4400 4500 4600 4700 4800
L 4399 4499 4599 4699 4799 4899 4999 5099 5199 5299 5399 5499
KG 68.73 69.97 71.21 72.45 73.69 74.93 76.17 77.41 78.65 79.89 81.13 82.37
Motor folds left down

Industrial Dust Proof Timing Belt Linear Stages Find Extensive Applications in Diverse Fields

Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200
L 799 899 999 1099 1199 1299 1399 1499 1599 1699 1799 1899
KG 24.09 25.33 26.57 27.81 29.05 30.29 31.53 32.77 34.01 35.25 36.49 37.73













Stroke 2500 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600
L 3199 3299 3399 3499 3599 3699 3799 3899 3999 4099 4199 4299
KG 53.85 55.09 56.33 57.57 58.81 60.05 61.29 62.53 63.77 65.01 66.25 67.49
Stroke 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400
L 1999 2099 2199 2299 2399 2499 2599 2699 2799 2899 2999 3099
KG 38.97 40.21 41.45 42.69 43.93 45.17 46.41 47.65 48.89 50.13 51.37 52.61













Stroke 3700 3800 3900 4000 4100 4200 4300 4400 4500 4600 4700 4800
L 4399 4499 4599 4699 4799 4899 4999 5099 5199 5299 5399 5499
KG 68.73 69.97 71.21 72.45 73.69 74.93 76.17 77.41 78.65 79.89 81.13 82.37

Motor folds right down

Industrial Dust Proof Timing Belt Linear Stages Find Extensive Applications in Diverse Fields

Stroke 100 200 300 400 500 600 700 800 900 1000 1100 1200
L 799 899 999 1099 1199 1299 1399 1499 1599 1699 1799 1899
KG 24.09 25.33 26.57 27.81 29.05 30.29 31.53 32.77 34.01 35.25 36.49 37.73
Stroke 2500 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600
L 3199 3299 3399 3499 3599 3699 3799 3899 3999 4099 4199 4299
KG 53.85 55.09 56.33 57.57 58.81 60.05 61.29 62.53 63.77 65.01 66.25 67.49
Stroke 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400
L 1999 2099 2199 2299 2399 2499 2599 2699 2799 2899 2999 3099
KG 38.97 40.21 41.45 42.69 43.93 45.17 46.41 47.65 48.89 50.13 51.37 52.61
Stroke 3700 3800 3900 4000 4100 4200 4300 4400 4500 4600 4700 4800
L 4399 4499 4599 4699 4799 4899 4999 5099 5199 5299 5399 5499
KG 68.73 69.97 71.21 72.45 73.69 74.93 76.17 77.41 78.65 79.89 81.13 82.37
